UV EQUIPMENT

UVACUBE 100 / 400 / 2000

- ozone free Honle-lamps with standard and special spectra
- two step power control
- optional ACM temperature reduction
- high operational safety
- user-friendly

제품상세설명

LIST
UVACUBE 100

Applications

- Curing of adhesives and plastics
- Curing of inks, varnishes and coatings
- UV irradiation for chemical and biological applications

Different lamp spectra

Honle UV lamps offer outstanding power yield with long lamp life.
There are three different spectra available: iron, gallium and mercury (see front).

Compact dimensions

The UVACUBE 100 has a useful working capacity of 18 x 18 x 18 cm (HxWxD) and is suitable for small component applications.
Optimised lamp reflectors and interior provide uniform irradiation (approx. +/- 10% at base of chamber).

Technical Data

- Supply voltage: 230 V / 50 Hz
- Power input: 100 W

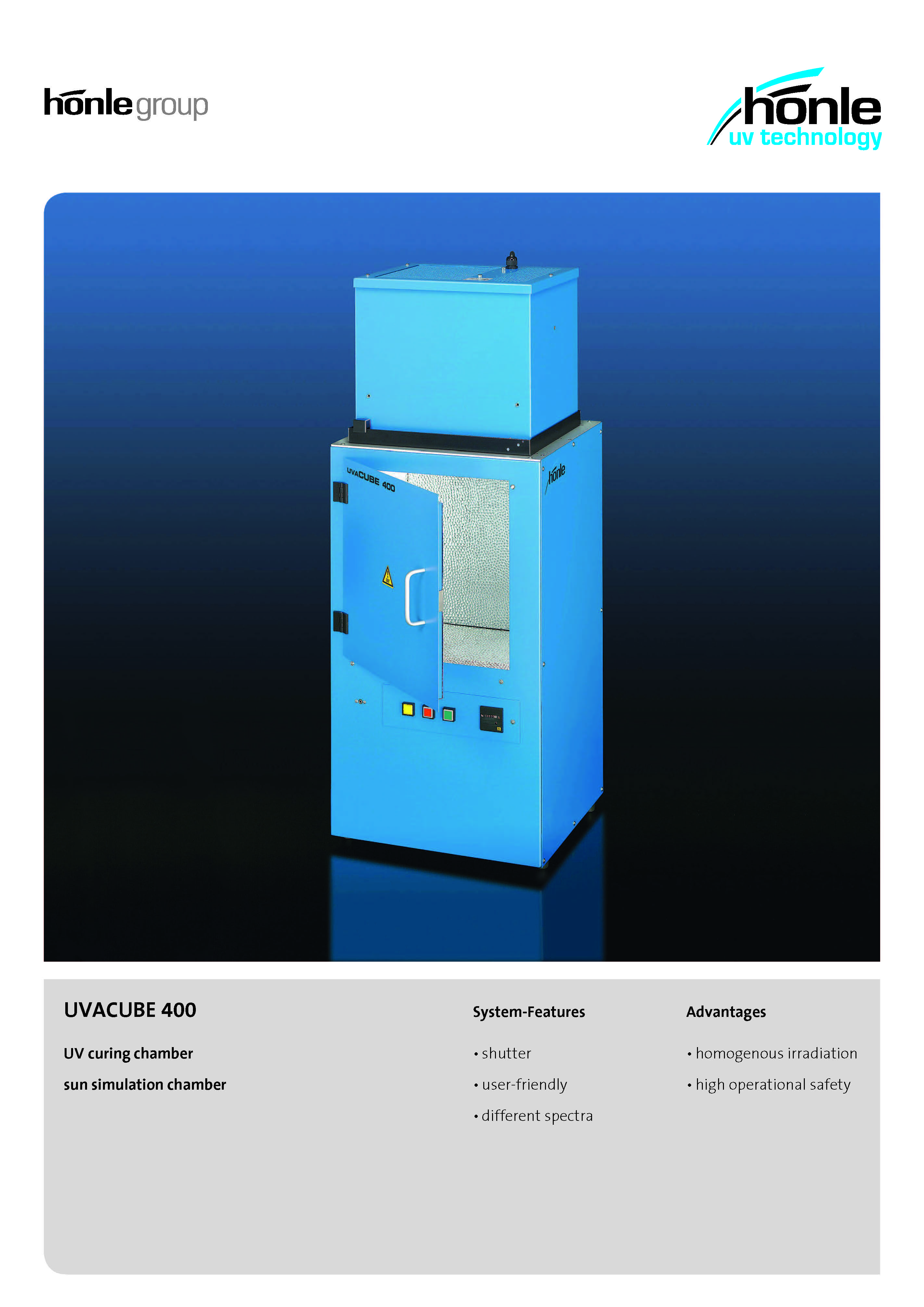

UVACUBE 400

The UVACUBE 400 is an economical UV curing chamber for laboratory use and manufacture by hand.
Due to various lamp/filter combinations, the spectra can be easily adapted for a large variety of applications.
UVACUBE 400 has a manually operated shutter and meets the highest demands in operational safety and ease of handling.


Generous capacity

UVACUBE 400 has a useful working capacity of around 450 x 400 x 300 mm (HxWxD) permitting a wide range of objects to be accommodated.
Optimised lamp reflectors and interior provide uniform irradiation
(approx. +/- 10% on bottom of chamber).

Multifunctional

Honle UV lamps offer outstanding power yield with long lamp life. With an electrical input of the lamp of 400 W the lamp has three different spectra available: iron, gallium,
mercury and sunlight simulation.

Technical data

- Supply voltage: 230 V / 50 Hz
- Power input: 400 W
- Dimensions (LxWxD): 834 x 466 x 402 mm
- Irradiation area: max. 400 x 300 mm

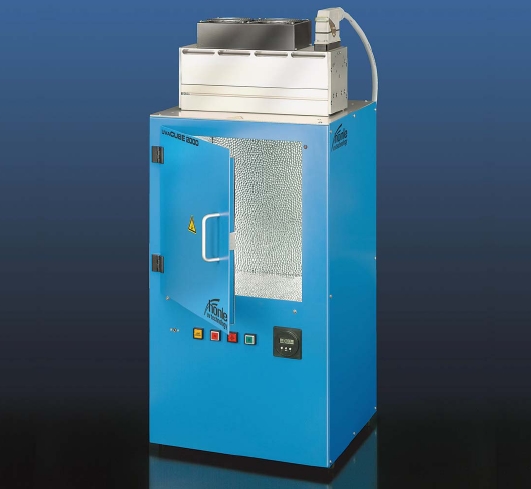

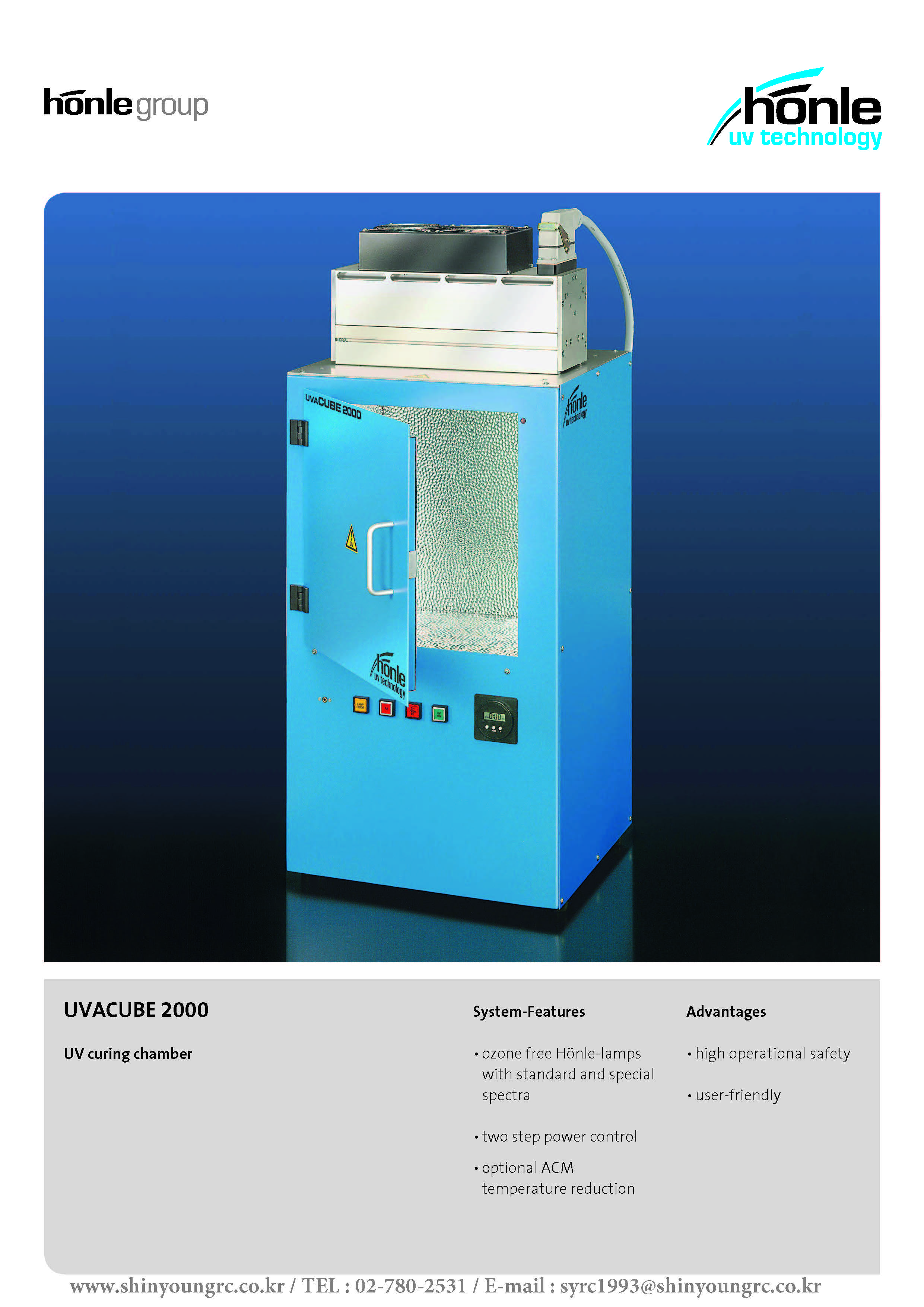

UVACUBE 2000

Applications

- Curing of adhesives and plastics
- Curing of inks, varnishes and coatings
- UV irradiation for chemical and biological applications

Exact and repeatable results

The standard supply of the timer controlled shutter is for exposure periods from 1 second to 9 minutes 59 seconds.
An option is for this timing range to be from 1 minute to 9 hours 59 minutes.
An acoustic device signals the end of irradiation.
As an option UVACUBE can be supplied with a UV sensor that can be located anywhere in the curing chamber to provide exact measuring results.

Generous capacity

UVACUBE 2000 has a useful working capacity of around 45 x 40 x 30 cm (HxWxD) permitting a wide range of objects to be accommodated.
Optimised lamp reflectors and interior provide uniform irradiation (approx. +/- 10% on bottom of chamber).

Safety of operation

Safety of operation is provided through interlocking. The door is locked when the shutter is open and the shutter is locked when the door is open.

Technical Data

- Supply voltage: 230 V / 50 Hz
- Power input: 2000 W
